Electrochemical Electrodes & Metal Mesh Materials
Electrode substrates, coated titanium anodes, and research mesh materials for industrial electrochemical applications.
Share your drawing, material specification, or operating conditions to discuss a suitable product configuration.
THREE WAYS TO START
Material / Coating / Equipment
Metal substrates
Woven mesh · Expanded mesh · Nickel foam
Electrode coatings
MMO titanium · Platinized titanium
Custom components
Drawings · Connections · Operating conditions
01 / CORE ELECTRODE PRODUCTS
Electrodes built around application requirements
Two priority product families for electrochemical projects. Substrate geometry, coating specifications, electrical connections, and service conditions must be confirmed for each order.
MMO / TITANIUM ANODES
MMO Titanium Anodes
Mixed metal oxide coated titanium anodes for selected electrochemical processes, including compatible chloride electrolysis and water treatment systems.
Discuss: Electrolyte, current density, coating chemistry and operating life criteria.
Supply format: Mesh, plate or other geometry according to verified manufacturing capability.
PLATINUM / TITANIUM ANODES
Platinized Titanium Anodes
Platinum-coated titanium electrode options for applications requiring a specified platinum surface and a suitable titanium substrate.
Discuss: Platinum coating specification, electrolyte, geometry and contact design.
Supply format: Available form and coating process must be verified for the project.
02 / ELECTRODE SUBSTRATES
Three substrate forms. Different specifications.
A material name alone does not determine an electrode. Woven wire mesh, expanded metal mesh, and metal foam have different structures, surface characteristics, and procurement parameters.
Select the structure first, then confirm metal grade, surface treatment, dimensions, and electrochemical operating conditions.

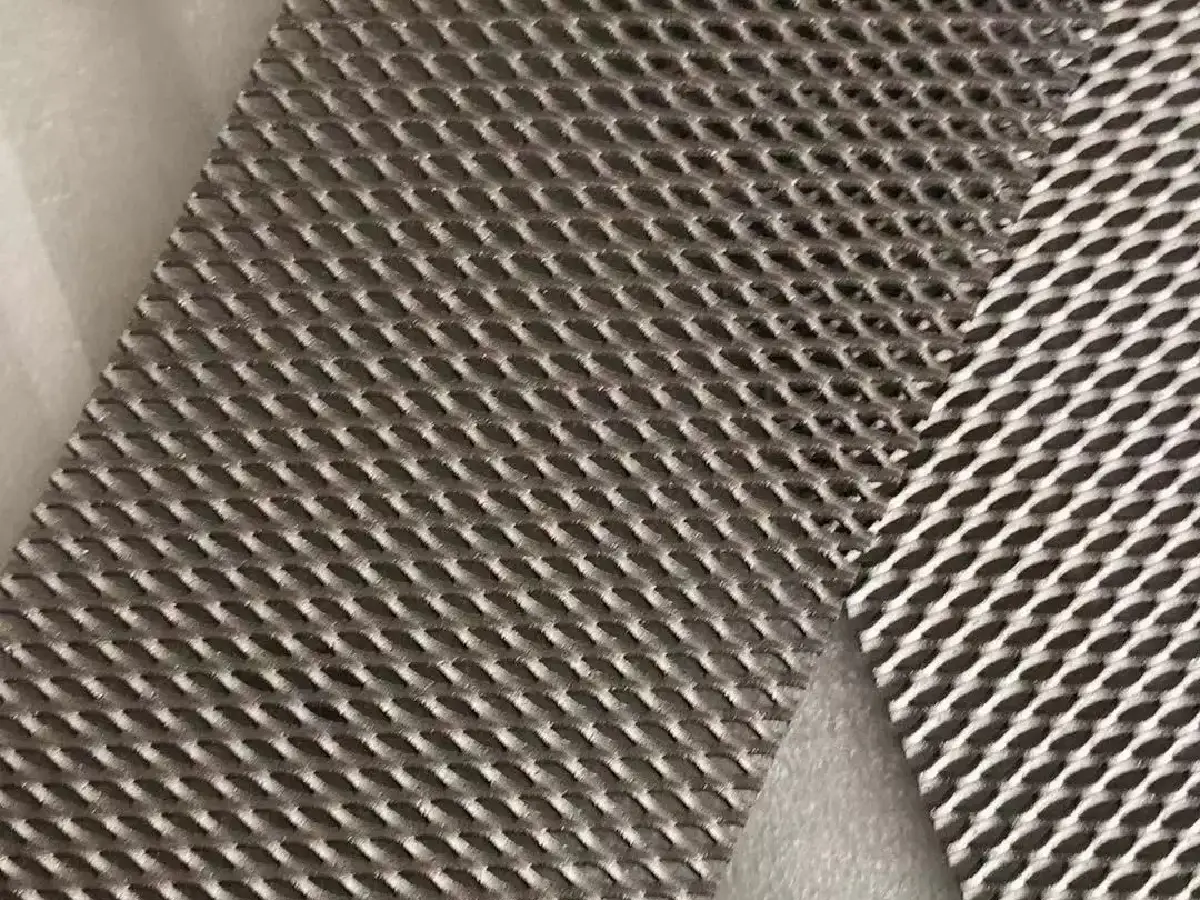

Real expanded titanium mesh substrate — a structural reference, not proof of a particular electrode coating.
01 / INTERLACED METAL WIRES
Woven Wire Mesh
Woven from crossing metal wires to form defined openings. Can be evaluated as a conductive substrate or fabricated mesh component when the material and electrochemical conditions are suitable.
Key specifications: Mesh count, wire diameter, aperture, weave type, sheet or roll size, wire grade and purity.
Material options for inquiry: Titanium, nickel, platinum, silver, tungsten and aluminum — availability varies by grade and specification.
02 / SLIT & STRETCHED SHEET
Expanded Metal Mesh
Made by slitting and stretching metal sheet into a continuous open structure, without woven intersections. Titanium expanded mesh is a common electrode-substrate geometry.
Key specifications: SWD, LWD, strand width, strand thickness, raised or flattened form, panel size and connection design.
Material options for inquiry: Titanium, nickel, aluminum and silver — individual metal structures require supply confirmation.
03 / THREE-DIMENSIONAL POROSITY
Metal Foam
An interconnected porous metal structure rather than a woven or expanded two-dimensional mesh. Nickel foam is the current priority for research electrodes and related substrate inquiries.
Key specifications: PPI, thickness, porosity, areal density, nickel purity, sheet dimensions and required surface treatment.
Material options for inquiry: Nickel foam; other metal foams remain under research.
03 / REAL PROCESS REFERENCES
Manufacturing and inspection, shown clearly
Real workshop and testing photographs help illustrate the process. These examples relate to titanium-anode preparation and inspection; exact manufacturing and testing arrangements depend on the electrode ordered.

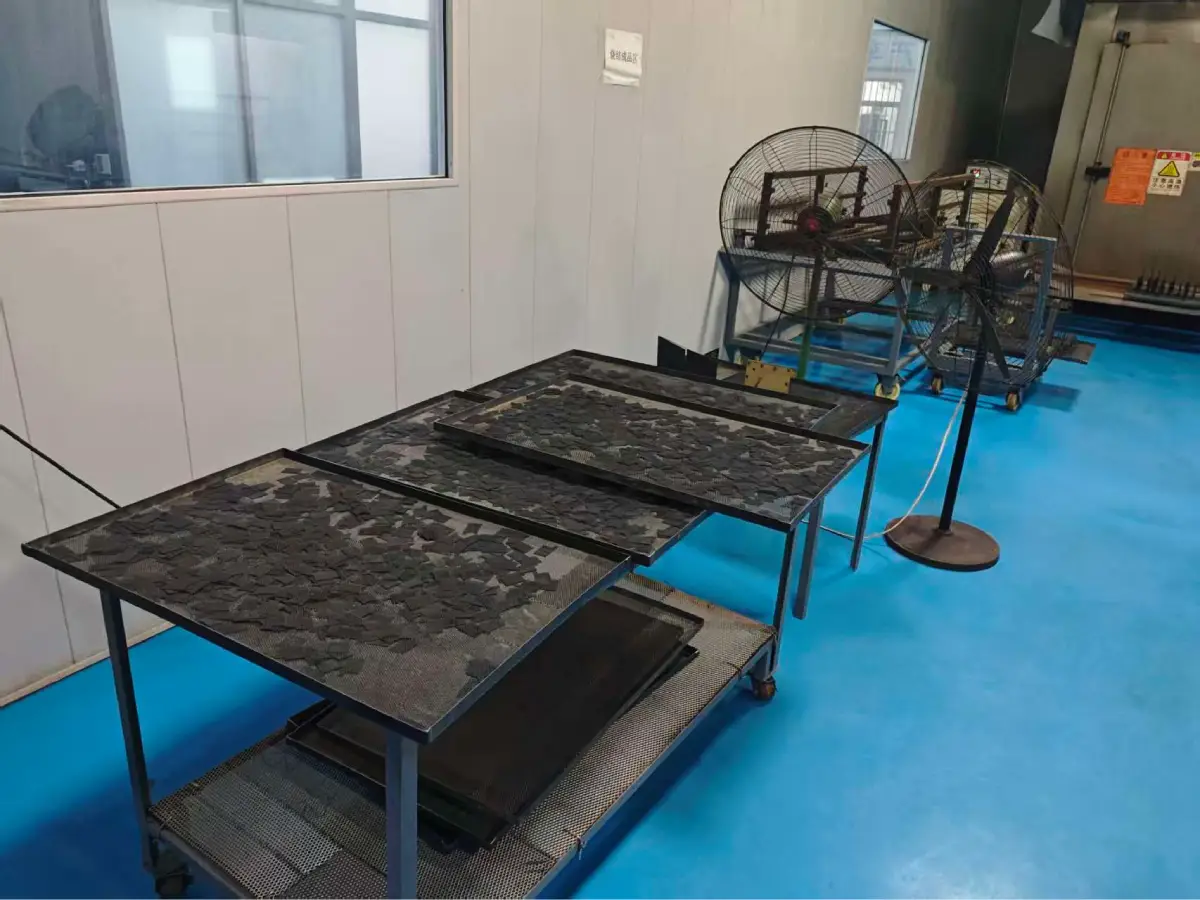

Coating process reference
Drying stage following a coating operation on titanium anode components.

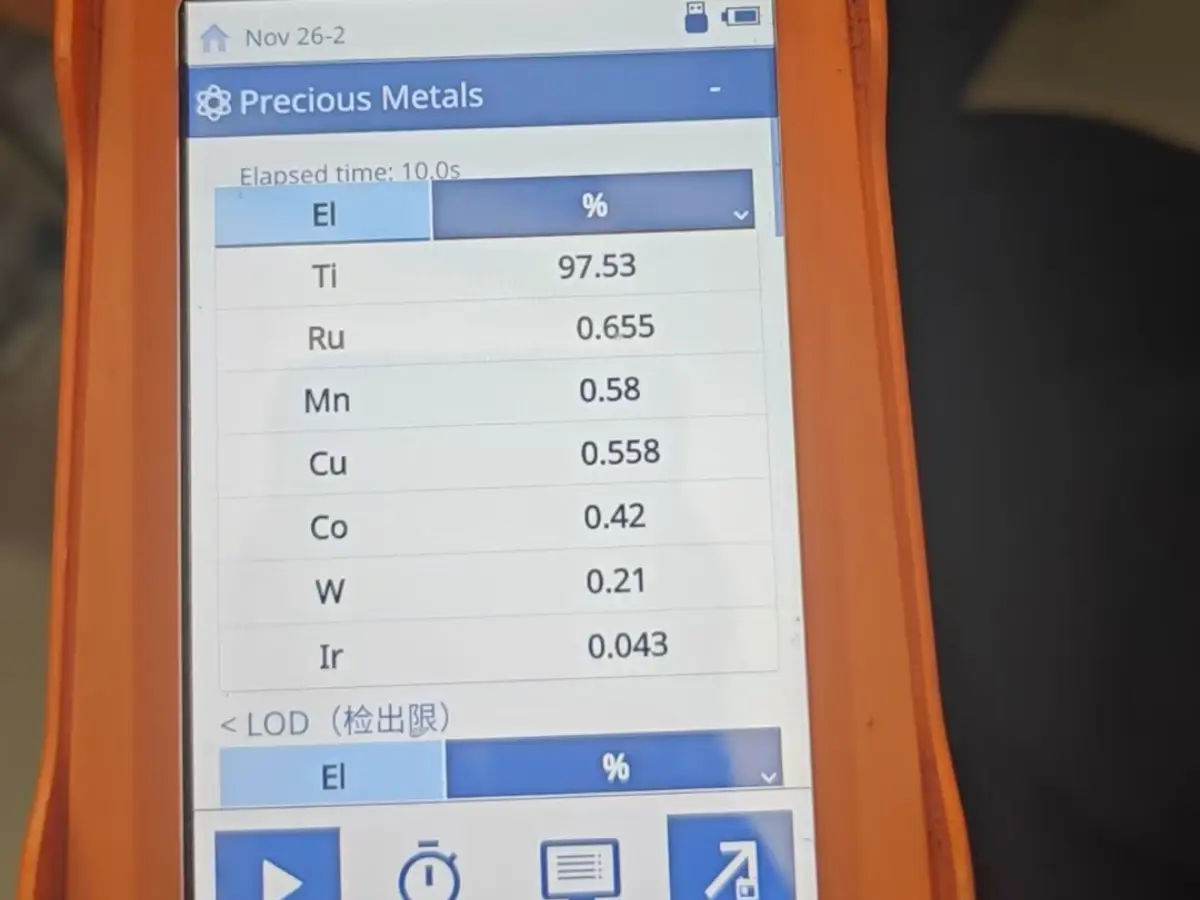

Material analysis reference
Material analysis equipment used during electrode-related inspection; no universal performance rating is implied.
For additional workshop and packaging references, visit About Us →
04 / APPLICATIONS
Where electrode requirements begin
Electrochlorination
Titanium electrode and coating selection for chloride-containing electrolysis systems.
Sodium Hypochlorite Generation
Electrodes for compatible on-site hypochlorite generation and water disinfection equipment.
Saltwater Pool Chlorination
Substrate and coated-electrode requirements for OEM and replacement projects; complete cell compatibility must be confirmed.
OEM & REPLACEMENT INQUIRIES
A drawing is often the best starting point.
Please share an existing electrode drawing, material or coating specification, equipment reference, and operating medium.
We can review what information is available and identify the remaining specifications needed for a quotation.
05 / SEND YOUR REQUIREMENTS
Discuss your electrode project
Drawings, photos, existing specifications, material and coating requirements, quantities, or operating conditions are all useful starting points.
EMAIL THE INTERNATIONAL INQUIRY CONTACT
Alan Guo
Send drawings, reference parts or a short description of the electrochemical application.
